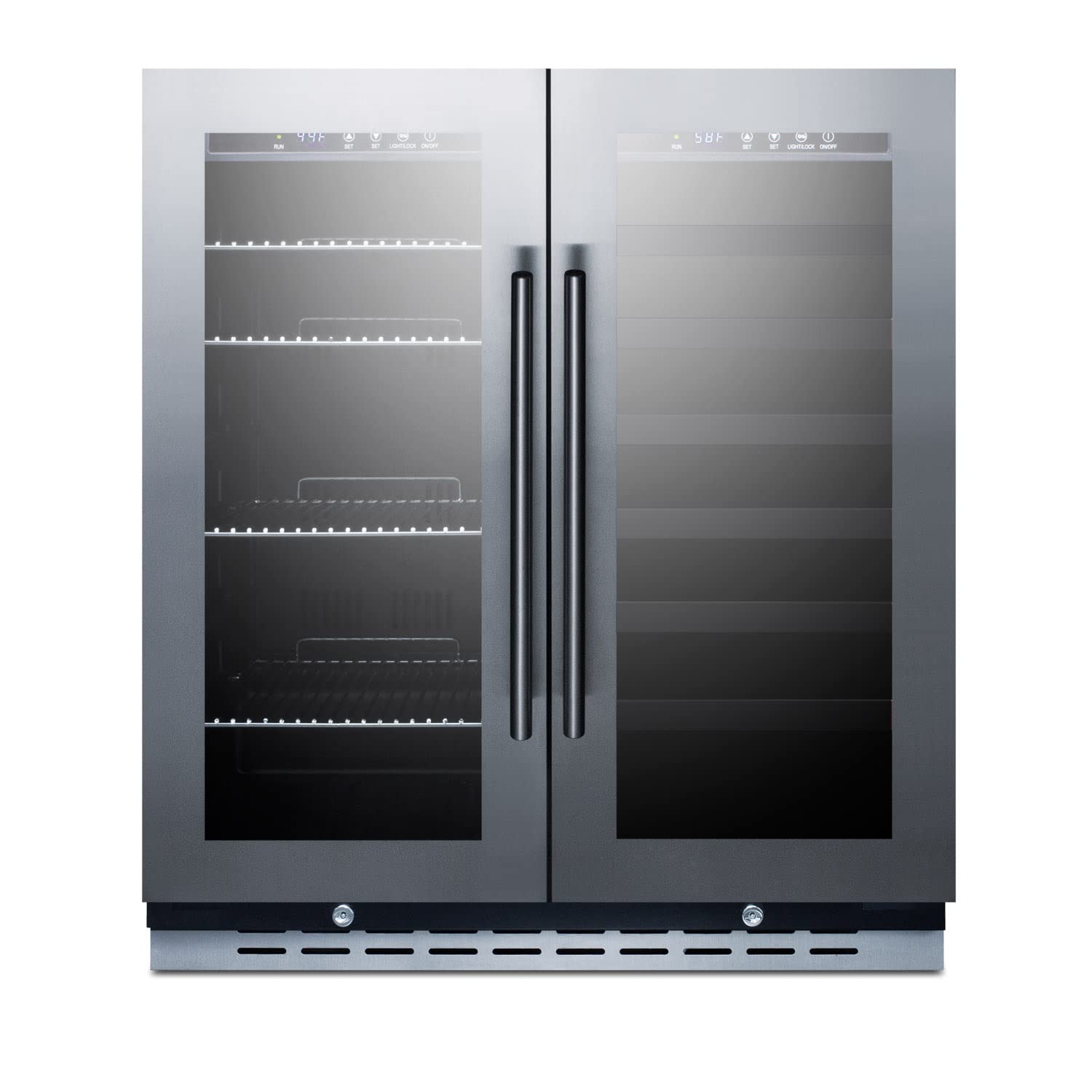

Summit 30” Wine Cellar/Beverage Center Combo, Stainless - SWBV3067B

.SPECIFICATIONS Overview Height of Cabinet 34.38" (87 cm) Width 29.5" (75 cm) Depth 22.5" (57 cm) Depth with Handle 24.25" (62 cm) Depth with door at 90° 36.0" (91 cm) Capacity 5.8 cu.ft. (164 L) Bottles 33 bottles Defrost Type Automatic Door Glass Cabinet Black US Electrical Safety ETL Canadian Electrical Safety ETL-C Sanitation ETL-S Amps 1.25 Voltage/Frequency 115 V AC/60 Hz Weight 132.0 lbs. (60 kg) Shipping Weight 176.0 lbs. (80 kg) Parts & Labor Warranty 1 Year Compressor Warranty 5 Years UPC 761101055794 Wine Cellar Number of Zones 2 Door Swing French Adjustable Shelves Yes Shelf Type Wire and Wood Shelf Qty 10 Thermostat Type Digital Interior Light Yes Fan Type Interior and Exterior Refrigerant Type R600a Refrigerant Amount 1.06 oz. High Side PSI 150.0 Low Side PSI 50.0 Interior Height 1 27.38" (70 cm) Interior Width 1 11.75" (30 cm) Interior Depth 1 17.5" (44 cm) Compressor Step Width 11.75" (30 cm) Compressor Step Depth 5.0" (13 cm) Level Legs 4 Temperature Range 41 to 64ºF Interior Height 2 27.38" (70 cm) Interior Width 2 11.75" (30 cm) Interior Depth 2 17.5" (44 cm) AVAILABLE UPGRADES Door T4F Door Tint Neutral door tint in light smoke finish for moderate energy savings T3F Door Tint Reflective door tint in light blue finish for medium energy savings T2F Door Tint Tinted door in reflective deep blue finish with high energy savings T1SF Door Tint Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models FEATURES Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments Built-in capable Make the best use of space by installing this unit under the counter and flush with other cabinetry Fully finished cabinet Allows the unit to be used freestanding Dual zone design Two independent zones allow you to store both red and white wine or craft beer at the proper conditions Recessed LED lighting Gentle and energy efficient LED lighting offers an elegant view of stored items Digital thermostats Each zone is equipped with electronic temperature controls for easy and intuitive temperature management Adjustable wooden and chrome shelves Includes 6 wooden shelves for bottle storage and 4 flat wire shelves to hold craft beer cans or bottles Professional handles Sleek stainless steel handles add an elegant touch to any setting Glass doors French door swing offers a modern look, with stainless steel door trim for an added accent Seamless stainless steel trimmed door frame Single-piece door trim offers a more deluxe look Factory installed locks Keyed locks on both zones offer separate security for interior contents Automatic defrost Reduced user maintenance with automatic defrost Fan-forced cooling Internal fans ensure both interiors have a consistent temperature from top to bottom 100% CFC free Environmentally friendly design without ozone-damaging chemicals CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations DESCRIPTION SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style. The SWBV3067B is a 30" wide wine and craft beer cooler designed for built-in installation under counters. The fully finished black cabinet also allows freestanding use. This unit includes two glass doors with a unique French door swing and seamless stainless steel trim. Both include factory installed locks and professional handles. A stainless steel kickplate completes the look. Two separate zones feature independent digital thermostats, letting you preserve red wine under warmer temperature conditions while keeping white wine or craft beer at colder temperatures. We provide six wooden wine shelves in a jet black finish and four wire chrome shelves, letting you arrange the shelving configuration to best suit your storage needs. Recessed LED lighting lets you display all items under an attractive, energy efficient glow. With a professional look and innovative design, SUMMIT SWBV3067B is a unique and versatile addition to any home. For a similar unit designed solely for wine storage, see the SWC3066. DOWNLOADS BROCHURE w/ DRAWINGS SWBV3067B.pdf TECHNICAL DRAWING (.dwg) SWBV3067WINEBEVERAGEA-C2000.dwg USE & CARE SWC3066B_SWBV3067B_Manual_3-29-2019.pdf
.Great for your home or business: This commercially approved wine cellar is ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments, but can also be the perfect fit for any home. Built-in capable under your counter with stainless steel trimmed glass French doors.
.Built to hold your favorite wines and drinks: Versatile combination interior can store up to 33 standard 750ml Bordeaux style and your other favorite drinks. Includes 6 wooden shelves for bottle storage and 4 flat wire shelves to hold craft beer cans or bottles.
.Features help make life easier: Two independent zones allow you to store both red and white wine or craft beer at different temperatures between 41 to 64ºF. Automatic defrost reduces user maintenance. Factory-installed locks protect the interior. Sleek stainless steel handles add an elegant touch to any setting.
.Dimensions & Build: 34.38" H x 29.5" W x 22.5" D, Bottle Capacity: 33, Capacity: 5.8 cu.ft. (164 L).
